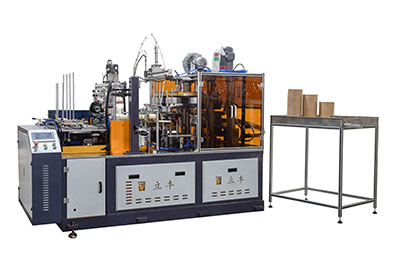

High Speed Paper Bowl Machine

WJ-90 High-Speed Paper Bowl Maker, 80-100 bowls/min with 170-350gsm PE paper, 20h/day stable run. Open cam+gear motor, auto-lubrication, touch PLC control. Direct feeding reduces waste; new collector cuts labor. Quiet, durable, easy-maintain.

Speed: 80-100 pcs/min

Voltage supply: 380v50hz 3-phase

Suitable paper weight: 170-350gsm

Machine Size: 2200*1200*1800 mm

Raw Material: Singe PE or Double PE coated paper

Cup Side Sealing: EVERGREEN Ultrasonic

Details Explained

The core components adopt open cam design, with gear motor.

Machine has full automatic lubrication by oil pump and filtration, more convenient for maintenance.

Separated curling from knurling and heaters makes less noise on machine than old design, more stability and long lifetime.

Control panel use touch screen, a clearer vision, the whole electrical appliances adopt imported configuration, have high generality and good performance, and facilitate equipment maintenance.

The machine is controlled by PLC, and has a encoder to control the working of ultrasonic, sensors, solenoid valve and so on, to make the running of each process more accurately.

Directly bottom paper feeding system can reduce the wastage of bottom paper .

New-type stable collecting system solves the collecting problem of the paper bowl totally, reduce the packing labor and improve the working efficiency. (two options for collecting bowls, you can choose collecting tabe or robot arm)

Parameters

Name	High Speed Paper Bowl Machine
HS Code	8441309000
Model	WJ-90
The machine includes: Finished Bowl Collect System
Paper bowl Size	A=90mm-140mm	B=70mm-110mm
	C=50mm-105mm	D=5mm-11mm
Raw Material	One-side or two-side PE coated paper(Singe PE or Double PE coated paper)
Speed	80-100pcs/min
	Speed of 20 hours stable running per day
Suitable paper weight	170-350gsm
Voltage supply	380v50hz 3-phase *If user’s voltage supply is different, please inform us in advance.
Working Air Source	Air pressure 0.6-0.8Mpa, 0.4m3/min User should buy Air Compressor
General power	10kw
Net weight	2000kgs
Measurement (mm)	220012001800
Cup Side Sealing	EVERGREEN Ultrasonic
We can customize machine and mold according to customer’s requirement.

After-sales

Remarks

Above prices are given on T/T payment, and needs extra USD500/shipment for L/C Payment.
Port of Loading: NINGBO, CHINA
Terms of Price: FOB NINGBO
Payment Terms: T/T Payment (30% As Deposit, 70% Before Delivery), or L/C
Lead time: 30 days after receiving the deposit
Packaging: Seaworthy woodencase packing

After-sale service

1. The guide booklet will be sent with machine to guide the installation process works, adjust the whole machine, production, avoid or solve the problem which the buyer will face.

2. Test run of the machine & training:

a) We will adjust the machine well for one week before the delivery, ensure the machine has the perfect performance.

b) If the technicians are asked to install machine and training the workers at buy’s factory , the buyer should pay all fees.

3. Training of buyer in China:

a) We supply the free training of buyer at our factory, the training won’t stop until the buyer control the whole lesson! The cost of air ticket, boarding and lodging should provided by buyer.

4. We supply the consumable spare parts for free for one years use.

Warranty

We warranty against any defects in design and workmanship for 1 year from the shipment date

This warranty won’t be applied to parts which are subject to wear and require normal replacement and to the durability of condition

We are not responsible for the damage caused by misuse, improper handling, neglectful maintenance, force injury and other reasons beyond our responsibility.

Sample Display
