Disposable Cup Making Machine

LF-110 Disposable paper cup forming machine efficiently with ultrasonic cup body sealing and hot air bottom sealing. Featuring full automatic lubrication, PLC + touch screen control, it uses PE-coated paper for cold/hot drinks.

Speed: 100-120 pcs/min

Paper Cup Size: 4-18oz

Voltage supply: 380v50hz 3-phase

Suitable paper weight: 190-350gsm

Raw Material: Singe PE or Double PE coated paper

Machine Size: 2500*1100*1500 mm

Customization options: Customizable

Details Explained

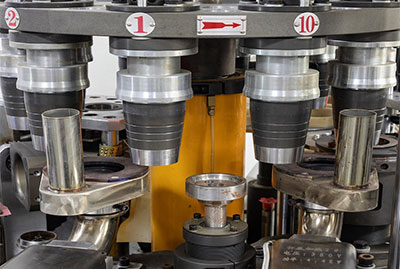

The core components adopt open cam design, with gear motor.

Machine has full automatic lubrication by oil pump and filtration, more convenient for maintenance.

The hot air heating system make the bottom sealed in a short time and high sealing quality.

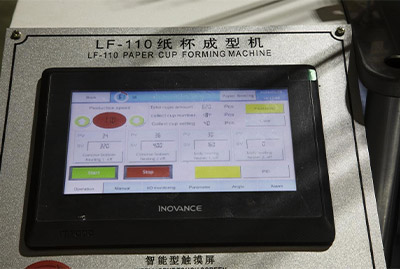

Control panel use touch screen, a clearer vision, the whole electrical appliances adopt imported configuration, have high generality and good performance, and facilitate equipment maintenance.

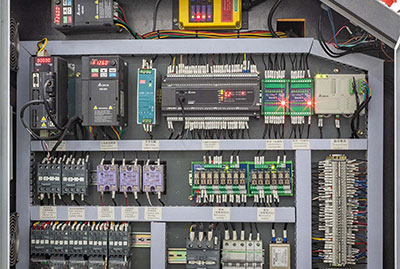

The machine is controlled by PLC, and has a encoder to control the working of ultrasonic, sensors, solenoid valve and so on, to make the running of each process more accurately.

Parameters

Name	Middle Speed Paper Cup Machine
HS Code	8441309000
Model	LF-110
The machine includes: Finished cup Collect System
Paper cup Size	A=70mm-95mm	B=48mm-70mm
	C=60mm-135mm	D=5mm-10mm
Raw Material	One-side or two-side PE coated paper(Singe PE or Double PE coated paper)
Speed	100-120pcs/min
	Speed of 20 hours stable running per day
Suitable paper weight	190-350gsm
Voltage supply	380v50hz 3-phase *If user’s voltage supply is different, please inform us in advance.
Working Air Source	Air pressure 0.5-0.8Mpa, 0.4m3/min User should buy Air Compressor
General power	11kw
Net weight	2500kgs
Measurement (mm)	250011001500
Cup Side Sealing	Ultrasonic sealing
We can customize machine and mold according to customer’s requirement.

After-sales

Remarks

Above prices are given on T/T payment, and needs extra USD500/shipment for L/C Payment.
Port of Loading: NINGBO, CHINA
Terms of Price: FOB NINGBO
Payment Terms: T/T Payment (30% As Deposit, 70% Before Delivery), or L/C
Lead time: 30 days after receiving the deposit
Packaging: Seaworthy woodencase packing

After-sale service

1. The guide booklet will be sent with machine to guide the installation process works, adjust the whole machine, production, avoid or solve the problem which the buyer will face.

2. Test run of the machine & training:

a) We will adjust the machine well for one week before the delivery, ensure the machine has the perfect performance.

b) If the technicians are asked to install machine and training the workers at buy’s factory , the buyer should pay all fees.

3. Training of buyer in China:

a) We supply the free training of buyer at our factory, the training won’t stop until the buyer control the whole lesson! The cost of air ticket, boarding and lodging should provided by buyer.

4. We supply the consumable spare parts for free for one years use.

Warranty

We warranty against any defects in design and workmanship for 1 year from the shipment date

This warranty won’t be applied to parts which are subject to wear and require normal replacement and to the durability of condition

We are not responsible for the damage caused by misuse, improper handling, neglectful maintenance, force injury and other reasons beyond our responsibility.
