LF-90

Automatic Mid-Speed Paper Cup Machine

LF-90 MID-speed paper cup forming machine is a multi station middle-speed automatic machine producing both single and double PE coated drink cups, ice cream cups through continuous process of automatic paper  feeding, sealing, oil injection, bottom cutting, heating, knurling, curling and stacking. The machine adopting hot air system, PLC control, servo motor driving, full-automatic failure warning, counting, detection, stopping, etc.

Automatic Mid-Speed Paper Cup Machine
  • Automatic Mid-Speed Paper Cup Machine
  • Automatic Mid-Speed Paper Cup Machine
  • Automatic Mid-Speed Paper Cup Machine
  • Automatic Mid-Speed Paper
  • Automatic Mid-Speed Paper Cup Machine
Parameters

Name

Middle Speed Paper Cup Machine

HS Code

8441309000

Model

LF-90

The machine includes: Finished cup Collect System

Paper cup Size

A=70mm-95mm

B=48mm-63mm

C=46mm-108mm

D=5mm-10mm

Raw Material

One-side or two-side PE coated paper (Singe PE or Double PE coated paper)

Speed

80-90pcs/min

Speed of 20 hours stable running per day

Suitable paper weight

190-350gsm

Voltage supply

 380v50hz 3-phase

*If user’s voltage supply is different, please inform us in advance.

Working Air Source

Air pressure 0.5-0.8Mpa, 0.4m3/min

User should buy Air Compressor

General power

9kw

Net weight

2300kgs

Measurement (mm)

2300*1250*1800

Cup Side Sealing

Ultrasonic sealing

We can customize machine and mold according to customer’s requirement.

Details Explained

Machine Main part uses the Geneva open cam (as the picture New on left), instead of old dividing box transmission, makes driving more accurate, faster, and more reliable stability

The base of machine--Machine bottom is made by CNC machining, shaped in one-piece, the thickness is more than others’ and heavier. It can improve the precision for each part, also help to stable the open cam long time running. The table also to be one piece, and completely closed design to make sure material can’t go to driving system.

The table of machine --The base of machine--Machine bottom is made by CNC machining, shaped in one-piece, the thickness is more than others’ and heavier. It can improve the precision for each part, also help to stable the open cam long time running. The table also to be one piece, and completely closed design to make sure material can’t go to driving system.

The sliding block is imported from Taiwan, instead of the old linear bearing design, this block has a long lifetime, and high precision.

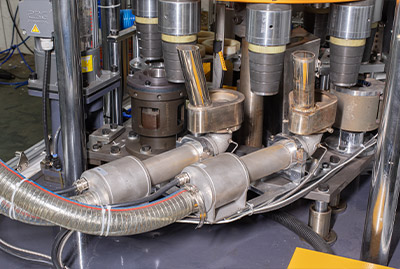

Bottom heaters we add the Hot air heating system, to form cup bottom at a short time and high quality.

Bottom heaters we add the Hot air heating system, to form cup bottom at a short time and high quality.

Bottom heaters we add the Hot air heating system, to form cup bottom at a short time and high quality.

This machine has automatic lubrication system, ensure the machine to keep long time running stably. The design of the oil pipe, can lubricate each point more accurately. We also add filter screen to keep the lifetime of oil core. Also this machine has oil pump and two valves, one valve for controlling the oil quantity, one is convenient to change oil.

This machine has automatic lubrication system, ensure the machine to keep long time running stably. The design of the oil pipe, can lubricate each point more accurately. We also add filter screen to keep the lifetime of oil core. Also this machine has oil pump and two valves, one valve for controlling the oil quantity, one is convenient to change oil.

The main motor with brake, can set the testing stop positioning, debugging positioning to be higher precision, also to ensure the safety of debugging person.

Imported electrical parts and PLC controlling, easy operation on touch screen, makes machine more intelligent.

Sample Display
After-sales
Remarks
  • Above prices are given on T/T payment, and needs extra USD500/shipment for L/C Payment.
  • Port of Loading: NINGBO, CHINA
  • Terms of Price: FOB NINGBO
  • Payment Terms: T/T Payment (30% As Deposit, 70% Before Delivery), or L/C
  • Lead time: 30 days after receiving the deposit
  • Packaging: Seaworthy woodencase packing





After-sale service



1. The guide booklet will be sent with machine to guide the installation process works, adjust the whole machine, production, avoid or solve the problem which the buyer will face.



2. Test run of the machine & training:

a) We will adjust the machine well for one week before the delivery, ensure the machine has the perfect performance.

b) If the technicians are asked to install machine and training the workers at buy’s factory , the buyer should pay all fees.



3. Training of buyer in China:

a) We supply the free training of buyer at our factory, the training won’t stop until the buyer control the whole lesson! The cost of air ticket, boarding and lodging should provided by buyer.



4. We supply the consumable spare parts for free for one years use.





Warranty



We warranty against any defects in design and workmanship for 1 year from the shipment date

This warranty won’t be applied to parts which are subject to wear and require normal replacement and to the durability of condition

We are not responsible for the damage caused by misuse, improper handling, neglectful maintenance, force injury and other reasons beyond our responsibility.
