CPC-220

Automatic Paper Cone Making Machine

CPC-220 Automatic Paper Cone Making Machine makes paper cone sleeve for ice cream, high speed from 190-230 pcs/min, can use different paper mate rial like art paper, aluminized paper, offset paper etc. Machine can make paper cone for ice cream and water cone.

CPC-220 Automatic Paper Cone Sleeve Making Machine
  • CPC-220 Automatic Paper Cone Sleeve Making Machine
  • CPC-220 Automatic Paper Cone Sleeve Making Machine
  • CPC-220 Automatic Paper Cone Sleeve Making Machine
  • CPC-220 Automatic Paper Cone Sleeve Making Machine
  • CPC-220 Automatic Paper Cone Sleeve Making Machine
Product Description
After-sale service



1. The guide booklet will be sent with machine to guide the installation process works, adjust the whole machine, production, avoid or solve the problem which the buyer will face.



2. Test run of the machine & training:

We will adjust the machine well for one week before the delivery, ensure the machine has the perfect performance.

We can dispatch technologists to buyer’s factory, guiding installation, adjustment for a period, the buyer in charge of the salary, traffic fee, boarding and lodging, communication living allowances.



3. Training of buyer in China:

We supply the free training of buyer, the training won’t stop until the buyer control the whole lesson! The cost of air ticket, boarding and lodging should provided by buyer



4. We supply the consumable spare parts for free for one years use





Warranty



We warranty against any defects in design and workmanship for 1 year from the shipment date

This warranty won’t be applied to parts which are subject to wear and require normal replan cement and to the durability of condition

We are not responsible for the damage caused by misuse, improper handling, neglectful maintenance, force injury and other reasons beyond our responsibility.





Parameters

Description

Automatic paper cone sleeve machine is made for ice cream and other similar paper cone sleeve.

Item

CPC-220

Speed

190-230pcs/min

Paper Cup Size

4-10oz

Cone angle

17-23degree

Cone length

90-185mm

Raw material

80-170 g/m2, art paper/aluminized paper/ offset paper/ wax paper etc.

Electricity

220V50Hz1phase、 380V50Hz3phase or customize

Power

9kw

Net weight

1000Kgs

Dimension

1850*1750*1800mm

Main parts brand

PLC: Mitubishi

Glue box: Robatech

VACUUM PUMP: Huitong

TRANSDUCER: Delta

SENSOR: Panasonic

ELECTRICAL PARTS: Schneider +Panasonic

Accessories

Special materials made of cone mold has a very long service life.

Switzerland Robatech boriginal nozzle at the bottom of the bonding more solid.

The vonveying paper is simple and stable.

Discharge waste and the vacuum is the integration of the whole machine.

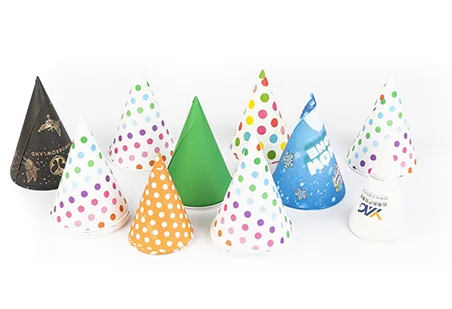

Sample Display
