You're running a paper cup production line, and the demand for double wall cups keeps growing—insulated sleeves for hot drinks, premium packaging for coffee shops, and branded cups that stand out. A double wall paper cup machine that can handle this complexity without slowing down or requiring constant adjustment is the key to staying competitive. The GWT-600H high-speed double wall paper cup making machine was designed with that principle in mind: stable running at 130-150 cups per minute, a full automatic system controlled by PLC and touch screen, and double layer sleeve forming that ensures every sleeve fits perfectly with the inner cup. This article walks through what makes this machine genuinely straightforward to operate—from the open-cam drive system that eliminates traditional mechanical wear points to the intelligent controls that put settings at your fingertips.
Questions Cup Manufacturers Ask About Double Wall Production
Two Practical Concerns—Answered Up Front
Q: How fast can the machine run, and does speed affect quality?
A: The GWT-600H delivers a stable running speed of 130-150 cups per minute. At that speed, you're producing over 8,000 cups per hour. The open-cam and gear transmission system ensures that speed doesn't compromise accuracy—each station operates with precision, so every cup meets the same quality standards.
Q: What makes double wall production different from single wall, and how does this machine handle it?
A: Double wall cups require forming the outer sleeve and then joining it to the inner cup. The GWT-600H uses a three-step process for double layer sleeve forming, which ensures the sleeve is high quality and fits with the inner cup perfectly. This multi-step approach eliminates the fit issues that plague less sophisticated machines.
The Drive System That Eliminates Traditional Weak Points
The GWT-600H replaces old traditional driving systems with an imported high-precision double OPEN-CAM driving system with gear transmission. This isn't a minor upgrade—it fundamentally changes how the machine operates and how long it stays accurate.
Why Open-CAM Outperforms Traditional Systems
Traditional cam systems wear over time, leading to play in the mechanism and gradual loss of positioning accuracy. The double open-cam design with gear transmission makes the molding of each station accurate and unmistakable. Each station operates with consistent precision, cup after cup, shift after shift.
Gear Transmission for Reliable Power Delivery
Gear transmission provides more consistent power delivery than belt or chain drives, which can stretch and require adjustment. The result is stable running speed across the entire production run, with fewer interruptions for maintenance or recalibration.
Intelligent Control—PLC and Touchscreen for Simple Operation
The GWT-600H features a full automatic and intelligent system, controlled by PLC and touch screen. This isn't a machine that requires a specialist to operate—the human-computer interface puts all settings at your fingertips.
What the PLC Touchscreen Actually Does
The human-computer interface PLC touch screen allows you to control all settings with a manual touch. No digging through menus, no memorizing code sequences—just tap and adjust. The system also includes an encoder to control the working of ultrasonic, sensors, solenoid valves, and so on, making the running of each process more accurate.
Automatic Paper Feeding That Reduces Operator Workload
The machine includes an automatic paper feeding system. When the sensor can't catch the paper fan, it transmits a signal and the system feeds paper fan automatically. This eliminates the need for an operator to constantly monitor paper supply and manually feed new material—one less thing to worry about during production.
Triple-Step sleeve Forming—The Secret to Perfect Double Wall Cups
Double wall cups require precise alignment between the outer sleeve and the inner cup. If the sleeve doesn't fit properly, the cup is rejected. The GWT-600H addresses this with a three-step process for double layer sleeve forming.
Why Three Steps Are Better Than One
A single forming step can't achieve the precision needed for consistent double wall fit. The three-step approach ensures the double layer sleeve is high quality and fits with the inner cup better. Each step gradually forms the sleeve, reducing stress on the paper and eliminating the fit issues that cause rejects.
The Result—Cups That Meet Customer Expectations
When the sleeve fits perfectly, the finished cup looks professional and performs reliably. No loose sleeves, no misaligned seams, no cups that fail in the customer's hand. The triple-step sleeve forming is a detail that makes a visible difference in the final product.

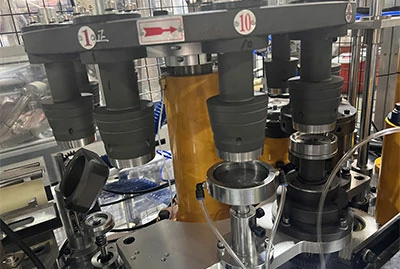

10 Aluminum Molds—Stability Through Intelligent Design
The GWT-600H features a 10 aluminum molds design, which divides the plate into 10 sections. This design choice has a direct impact on machine stability and longevity.
What 10 Molds Mean for Machine Stability
With 10 molds, the machine turns a small angle with each cycle. Instead of large, abrupt movements that stress the drive system, the machine operates with smooth, incremental motion. This makes the machine more stable and extends the driving system's lifetime.
Less Wear, Longer Life
Smooth, incremental motion reduces stress on gears, cams, and bearings. The result is longer component life and fewer unscheduled maintenance stops. For a machine running 20 hours a day, this translates to higher uptime and lower maintenance costs.
Technical Specifications at a Glance
The GWT-600H is built for high-volume double wall cup production with specifications designed for reliability and output:
| Parameter | GWT-600H Specification |
|---|---|
| Model | GWT-600H |
| Paper Cup Size | 4-16oz or customize |
| Speed | 130-150 pcs/min |
| Daily Running Speed | 20 hours stable running per day |
| Raw Material | PE coated paper, ripple paper, paper card, grey paper board, etc. |
| Voltage Supply | 380V 50Hz 3-phase |
| General Power | 4.5kW |
| Air Source | 0.4MPa |
| Net Weight | 3600kg |
| Measurement | 3000×1550×2000mm |
| HS Code | 8441309000 |
| Lead Time | 25-30 working days after receiving deposit |
| Warranty | 1 year from shipment date |
Where the GWT-600H Excels in Production
The GWT-600H is designed for paper cup manufacturers who need high-volume double wall production with consistent quality:
Coffee Shop and Beverage Cups
Double wall cups provide insulation that keeps hot drinks comfortable to hold. The GWT-600H produces sleeves that fit precisely, ensuring the finished cups meet the quality standards that coffee shop chains demand.
Branded and Premium Packaging
For brands that want to stand out, double wall cups offer more surface area for branding and a premium feel. The GWT-600H's consistent forming and triple-step sleeve process ensure every cup reflects the brand's quality standards.
High-Volume Production Lines
With 20 hours of stable running per day and 130-150 cups per minute, the GWT-600H is built for the demands of high-volume production. The automatic paper feeding and intelligent control system reduce operator intervention, allowing the machine to run continuously with minimal supervision.
Straight Answers on Double Wall Paper Cup Machines
Q: What is the production speed of the GWT-600H?
A: The machine delivers a stable running speed of 130-150 cups per minute.
Q: What cup sizes can the machine produce?
A: The GWT-600H produces cups from 4-16oz, with customization available.
Q: What materials can the machine process?
A: The machine processes PE coated paper, ripple paper, paper card, grey paper board, and more.
Q: How does the machine ensure accurate forming?
A: The double open-cam driving system with gear transmission ensures the molding of each station is accurate and unmistakable.
Q: What control system does the machine use?
A: The machine features a full automatic and intelligent system controlled by PLC and touch screen.
Q: How does the machine handle double wall forming?
A: The machine uses a three-step process for double layer sleeve forming, ensuring high-quality sleeves that fit perfectly with inner cups.
Q: What is the warranty period?
A: The machine comes with a 1-year warranty against defects in design and workmanship from the shipment date.
Q: What after-sales support is available?
A: Sincere Machine provides free consumable spare parts for one year, a guide booklet for installation and operation, and free training at their factory. On-site installation and training are also available with buyer-paid fees.
Get a Quote for Your Double Wall Production Line
A double wall paper cup machine that combines speed, stability, and simplicity is the foundation of any successful cup production operation. The GWT-600H from Sincere Machine delivers 130-150 cups per minute, an open-cam gear transmission system that eliminates traditional wear points, a PLC touchscreen that simplifies operation, and a three-step sleeve forming process that ensures perfect sleeve fit every time.
Whether you're producing cups for coffee shops, branded packaging, or high-volume distribution, the GWT-600H offers the reliability and output that paper cup manufacturers need. With a 1-year warranty, free consumable spare parts for one year, and comprehensive after-sales support, it's built for long-term production.
Contact Sincere Machine for a quote or configuration consultation → their team can help you select the right mold size and options for your specific cup requirements and production targets. Get a double wall machine that simplifies production without compromising on quality.
