Details Explained

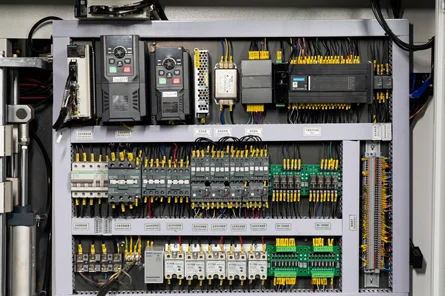

This imported electrical control system with a 9-inch touch screen acts as the brain of the paper cup machine, offering automated control, parameter setting, real-time monitoring, and safety protection for stable, high-precision production.

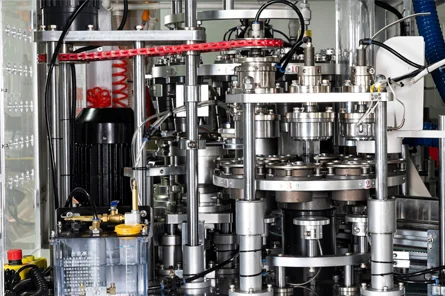

This multi-station turret mechanism of the paper cup machine completes forming, bottom sealing, and curling processes at indexed stations, enabling high-speed, synchronous production of consistent, high-quality paper cups.

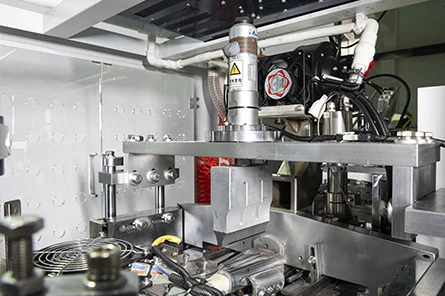

This ultrasonic sealing mechanism on the paper cup machine uses high-frequency vibration to heat and weld the cup bottom, forming a strong, leak-proof seal without glue, ensuring fast, consistent production of high-quality cups.

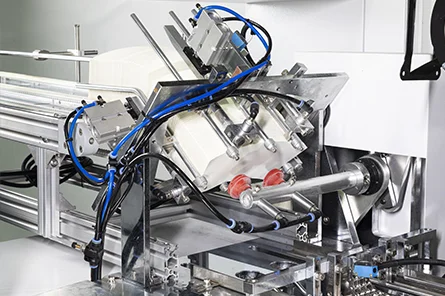

automatic paper feeding unit of the paper cup machine

The machine includes the automatic paper feeding system, when the sensor can’t catch the paper fan, it will transmit a signal, when the system will feed paper fan automatically.

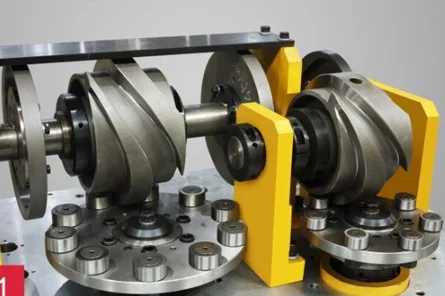

The core components adopt foreign dual-bit technology, it has long life. Circle and the parts of the machine is more stable

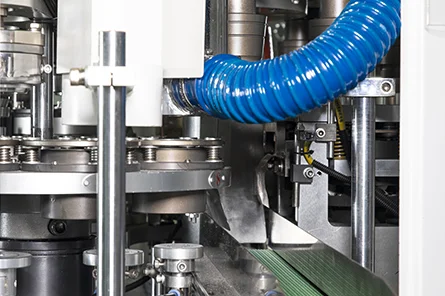

This is the discharge mechanism of the paper cup machine, automatically transferring finished cups to the conveyor, guiding them to the collection area, and using air flow to remove debris for smooth, continuous production.

Parameters

Name	High Speed Paper Cup Machine
HS Code	8441309000
Model	LF-120
FOB PRICE
The machine includes: Finished Cup Collect System, Safety Fence and Automatic Paper Fan Feeding System
Paper Cup Size	4-9oz
Raw Material	One-side or two-side PE coated paper(Singe PE or Double PE coated paper)
Speed	130-150pcs/min， stable running speed on 24hours/day
	Speed of 24 hours stable running per day
Suitable paper weight	190-350gsm
Paper Cup bottom Diameter	45-65mm
Paper Cup Height	60-135mm
Paper Cup Degree	4-7.5mm
Voltage supply	380v50hz 3-phase *If user’s voltage supply is different, please inform us in advance.
Working Air Source	Air pressure 0.5-0.8Mpa User should buy Air Compressor
General power	13kw
Net weight	3660kgs
Measurement (mm)	300015502000
Cup Side Sealing	EVERGREEN Ultrasonic
We can customize machine and mold according to customer’s requirement.

After-sales

Remarks:

Above prices are given on T/T payment, and needs extra USD500/shipment for L/C Payment.
Port of Loading: NINGBO, CHINA
Terms of Price: FOB NINGBO
Payment Terms: T/T Payment (30% As Deposit, 70% Before Delivery), or L/C
Lead time: 30-35 working days after receiving the deposit
Packaging: Seaworthy woodencase packing

After-sale service

1. The guide booklet will be sent with machine to guide the installation process works, adjust the whole machine, production, avoid or solve the problem which the buyer will face.

2. Test run of the machine & training:

(a) We will adjust the machine well for one week before the delivery, ensure the machine has the perfect performance.

(b) If the technicians are asked to install machine and training the workers at buy’s factory , the buyer should pay all fees.

3. Training of buyer in China:

(a) We supply the free training of buyer at our factory, the training won’t stop until the buyer control the whole lesson! The cost of air ticket, boarding and lodging should provided by buyer.

4. We supply the consumable spare parts for free for one years use.

Warranty

We warranty against any defects in design and workmanship for 1 year from the shipment date

This warranty won’t be applied to parts which are subject to wear and require normal replacement and to the durability of condition

We are not responsible for the damage caused by misuse, improper handling, neglectful maintenance, force injury and other reasons beyond our responsibility.
