Details Explained

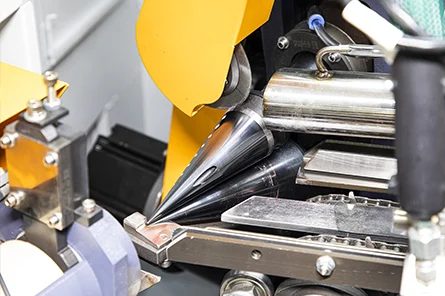

Switzerland Robatech boriginal nozzle at the bottom of the bonding more solid.

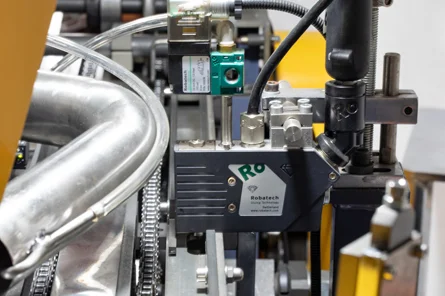

Robatech glue tank, century-old brand quality guarantee.

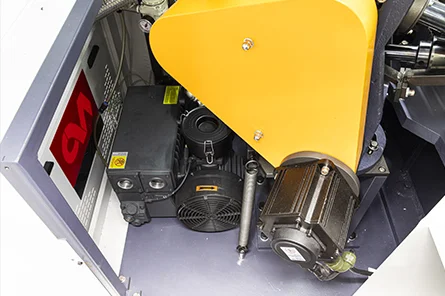

The vacuum pump provides suction for paper holding and gluing, while the servo motor delivers precise power for winding, ensuring the paper cone machine’s forming accuracy and production efficiency.

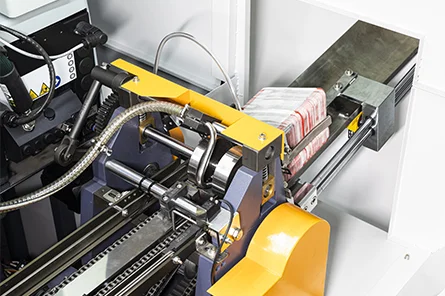

This is the automatic paper feeding mechanism of the paper cone machine, which automatically separates, feeds, and positions paper blanks to the forming station, ensuring stable, continuous production and precise alignment.

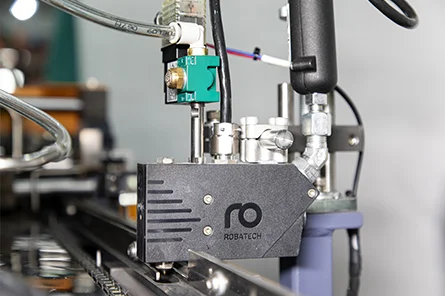

Swiss-Robatech-industrial-glue-dispensing-valve

Robatech, a leading industrial adhesive application specialist, manufactures this precision dispensing valve. Designed for automated production lines, it accurately applies hot melt or cold adhesives with high speed and control.

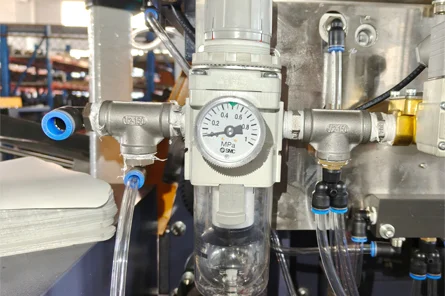

Japanese-imported SMC solenoid valves for stable current transmission

Automatic edge cutting with self-cleaning waste out function.

Every step is detected by high-precision photoelectric sensors.

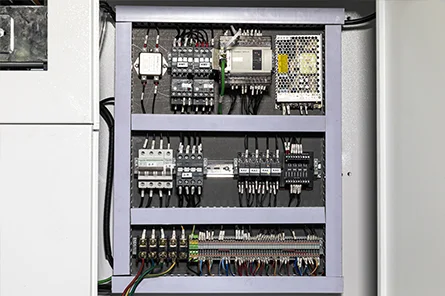

This electrical cabinet acts as the "brain" of the paper cone machine, using PLC to automate all processes, distribute power, control actuators, and protect the equipment for stable production.

Parameters

Description	Full servo paper cone sleeve machine is made for ice cream and other similar paper cone sleeve.
Item	CPC-300
Speed	280-300 pcs/min
FOB Ningbo
Paper Cup Size	4-10oz
Cone angle	17-23degree
Cone length	100-230mm
Raw material	80-170 g/m2, art paper/aluminized paper/ offset paper/ wax paper etc.
Electricity	220V50Hz1phase、 380V50Hz3phase or customize
Power	9kw
Net weight	1000Kgs
Dimension	185017501800mm
Main parts brand	PLC/SERVO SYSTEM: XINJE Glue box: Robatech VACUUM PUMP: Huitong SENSOR: Panasonic ELECTRICAL PARTS: Schneider +Panasonic

After-sales

After-sale service:

1．The guide booklet will be sent with machine to guide the installation process works, adjust the whole machine, production, avoid or solve the problem which the buyer will face.

2. Test run of the machine & training:

We will adjust the machine well for one week before the delivery, ensure the machine has the perfect performance.

We can dispatch technologists to buyer’s factory, guiding installation, adjustment for a period, the buyer in charge of the salary, traffic fee, boarding and lodging, communication and each day 200usd living allowances.

3.Training of buyer in China:

We supply the free training of buyer, the training won’t stop until the buyer control the whole lesson! The cost of air ticket, boarding and lodging should provided by buyer

4. We supply the consumable spare parts for free for one years use

Warranty:

We warranty against any defects in design and workmanship for 1 year from the shipment date

This warranty won’t be applied to parts which are subject to wear and require normal replan cement and to the durability of condition

We are not responsible for the damage caused by misuse, improper handling, neglectful maintenance, force injury and other reasons beyond our responsibility.

Sample Display

Full Servo Paper Cone Sleeve Making Machine
