How Does Intelligent Servo Control Improve Paper Cup Production?

You're running a paper cup production line—serving coffee chains, tea shops, or beverage OEMs. The market demands consistent quality, high output, An intelligent paper cup machine does exactly that: it integrates servo-driven motion control, PLC-based monitoring, and advanced sealing technologies to deliver reliable performance at speed. The SFBJ-160 is a high-speed model capable of 160-200 cups per minute, with full servo control and dual sealing options. This guide covers the key capabilities—production speed, sealing technology, material compatibility, and control features—so you can evaluate whether an intelligent cup forming system is the right fit for your production line.

How an Intelligent Paper Cup Machine Works

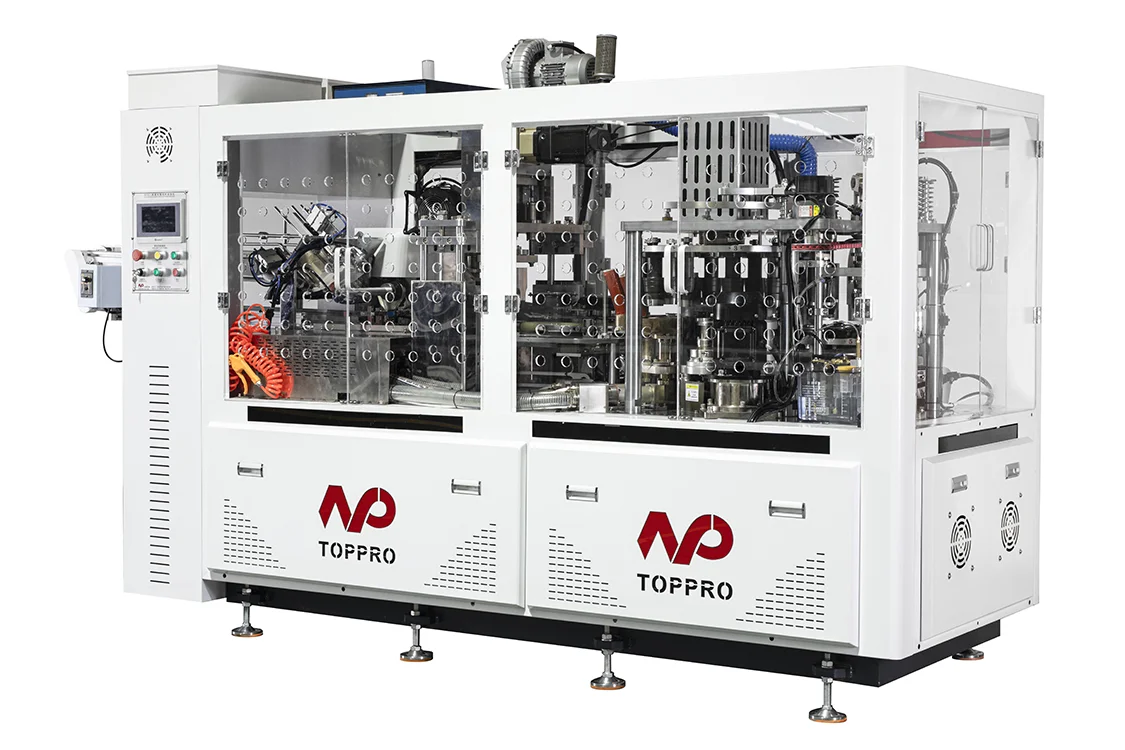

A paper cup forming machine takes flat paperboard and transforms it into finished cups through a series of automated stations: paper feeding, side sealing, bottom forming, bottom knurling, curling, and cup discharge. The process runs continuously from a roll of PE-coated paper or PLA-coated board, with each station performing its function in sequence. The SFBJ-160 uses a full servo control system with PLC touch-screen monitoring to coordinate all movements, ensuring that each cup is formed with consistent quality.

The Complete Forming Process

The machine starts with a paper fans fed into the forming section. Side sealing is applied—both ulttrasonic and hot air heatng system—followed by bottom feeding, preheating, and knurling to create a secure base. The cup rim is then curled for a smooth drinking edge, and the finished cup is discharged. Each station operates in precise synchronization, with cycle times measured in fractions of a second.

Multi-Station Synchronization

The servo control system coordinates all stations simultaneously, ensuring that multiple cups are in different stages of production at the same time. This parallel processing is what enables the high output—each station performs its function on a different cup concurrently, keeping the line moving without bottlenecks.

Production Speed That Scales With Demand

The SFBJ-160 achieves a production speed of 160-200 cups per minute, making it one of the fastest models in its class. At this rate, a single machine can produce nearly 10,000 cups per hour—enough to supply multiple coffee shop locations, fulfill large OEM orders, or maintain inventory for peak demand periods. The speed is consistent and reliable, thanks to the full servo control system that maintains precision even at maximum output.

Output Comparison Across Models

The SFBJ-160 sits at the top of the speed range, outperforming the GZB-600 (130-150 cups/min) and the LF-110 (100-120 cups/min). For high-volume production environments where every minute counts, the additional output translates directly to higher throughput and lower per-unit costs.

Maintaining Quality at Speed

Higher speeds don't mean compromised quality. The servo-driven motion control ensures that each forming station operates with micron-level precision, maintaining consistent cup dimensions and seal integrity even at maximum production speed.

Sealing Technology – Ultrasonic and Hot Air

The SFBJ-160 offers ultrasonic and hot air sealing options, allowing you to match the sealing method to your material and quality requirements. Ultrasonic sealing uses high-frequency vibrations to bond the paper layers without additional heat, producing strong, consistent seals. Hot air sealing uses heated air to activate the PE coating on the paper, creating a bond through heat and pressure.

Ultrasonic Sealing – Strong Bonds Without Heat

Ultrasonic sealing is particularly effective for single and double PE coated papers, producing seals that are strong, consistent, and free of burn marks. The process is clean, energy-efficient, and reduces the risk of seal failure.

Hot Air Sealing – Traditional and Reliable

Hot air sealing is the traditional method for paper cup production. It uses heated air to activate the PE coating on the paper, creating a strong bond through heat and pressure. The SFBJ-160 supports both methods, giving you flexibility across different materials and quality standards.

Control and Automation – Precision at Your Fingertips

The SFBJ-160 features a full servo control system with PLC touch-screen monitoring. This combination provides precise coordination of all machine functions—paper feeding, forming, sealing, and discharge—with real-time monitoring and parameter adjustment. The servo system provides higher motion accuracy and easier parameter adjustment.

Servo-Driven Precision

Each station is driven by its own servo motor, providing independent control and precise synchronization. This allows for fine-tuning of each operation—from paper feed timing to sealing pressure—ensuring consistent quality across every cup.

PLC Touch-Screen Interface

The PLC touch-screen interface simplifies setup and monitoring. Operators can adjust parameters, monitor production status, and troubleshoot issues without complex programming. The system also includes fault alerts for faster inspection and scheduled maintenance.

Key Specifications

What Cup Producers Ask About High-Speed Forming Equipment

What cup sizes can the SFBJ-160 produce?
Client can use machine by choosing one cup size from the range of 4-16oz , this range is covering most standard beverage cup sizes from small espresso cups to large cold drink cups.

What is the production speed?
The SFBJ-160 runs at 160-200 cups per minute, making it suitable for high-volume production environments such as large chains and OEM operations.

What materials does it support?
The machine handles single PE, double PE, and PLA-coated paper with a weight range of 190-350gsm.

What sealing technologies are available?
The SFBJ-160 supports both ultrasonic and hot air sealing, giving you flexibility to match the sealing method to your material and quality requirements.

How does the servo control system improve production?
The full servo system provides precise coordination of all machine functions with higher motion accuracy and easier parameter adjustment, ensuring consistent quality across every cup.

Ready to Scale Your Cup Production with a Smarter Machine?

Selecting a paper cup machine comes down to three factors: production speed (match your volume), cup size range (match your market), and material compatibility (match your product requirements). Contact TOPPRO for a customized quote → —their team can help you select the right SFBJ-160 configuration for your specific cup production needs.

TOPPRO, a brand of Sinceremachine, specializes in high-speed intelligent paper cup forming equipment for the beverage packaging industry. The SFBJ-160 Intelligent Paper Cup Machine features a full servo control system with PLC touch-screen monitoring, ultrasonic and hot air sealing options, and support for single PE, double PE, and PLA-coated paper from 190-350gsm. It produces cups in the 4-16oz range at speeds of 160-200 cups per minute. The machine is designed for 24/7 operation with oil-bath lubrication and centralized fault monitoring. Applications include large coffee chains, tea shops, beverage OEMs, and food service packaging manufacturers. TOPPRO provides comprehensive technical support, installation guidance, and after-sales service. Connect with TOPPRO to discuss your cup size requirements, production volume targets, and material specifications.
