Does a Paper Bowl Machine Need Ultrasonic Sealing?

You're running a paper bowl production line, and the order is large. The machine needs to keep running through the shift without overheating, jamming, or losing registration. A Paper Bowl Machine built for continuous operation uses an open cam design with automatic lubrication to maintain stability over long production runs. The DW-50 Disposable Bowl Making Machine is rated for 20 hours of stable running per day, with ultrasonic body sealing and a direct bottom paper feeding system that reduces waste. This article explains what makes the DW-50 suitable for high-volume production, how the automatic collection system reduces labor, and what to verify before specifying a bowl making machine for your line.

What Does the Open Cam Design Contribute to Reliability?

The DW-50 uses an open cam design with a gear motor for its core components. The open cam structure allows the cam and gear mechanism to be inspected and serviced without dismantling the entire machine. This accessibility simplifies maintenance and reduces downtime when components need attention. The machine also features a full automatic lubrication system with an oil pump and filtration. The lubrication system circulates oil through the cam and gear housing, reducing friction and extending component life. For machines running 20 hours per day, this continuous lubrication is essential to preventing wear-related failures. The separation of curling, knurling, and heater components further enhances stability and extends the service life of the equipment.

Automatic Lubrication for Reduced Maintenance**

The oil pump and filtration system deliver oil to the critical wear points without manual intervention. The filtration removes particles that could accelerate wear. This design reduces the maintenance burden on operators and keeps the machine running consistently across long production shifts.

Separated Components for Lower Noise and Longer Life**

Separating the curling, knurling, and heater stations reduces machine noise compared to older designs where these functions were combined. The separated design also reduces vibration and heat transfer between stations, contributing to longer component life and more stable operation.

How Does Ultrasonic Sealing Work on Paper Bowls?

The DW-50 uses EVERGREEN ultrasonic technology for the cup side sealing. Ultrasonic sealing creates a molecular bond by applying high-frequency vibrations to the paper layers. The vibrations generate friction at the interface, softening the PE coating and fusing the layers together without adhesive. This process produces a clean, strong seal that resists leakage. The control system uses a PLC with an encoder to manage the ultrasonic unit, sensors, and solenoid valves. This coordination ensures that the ultrasonic sealing activates at exactly the right moment in each cycle, maintaining consistent seal quality across the production run.

PLC and Encoder Control for Precise Timing**

The PLC coordinates the ultrasonic sealing with the machine's other functions, while the encoder provides position feedback that ensures each process step occurs at the correct point in the cycle. This precise timing is critical for consistent seal quality at 50-60 pcs/min.

Clean Seals Without Adhesive**

Ultrasonic sealing eliminates the need for glue, reducing the risk of adhesive contamination and simplifying the sealing process. The bond is created from the paper's own coating, producing a clean seam that's suitable for food-contact applications.

How Does Direct Bottom Paper Feeding Reduce Waste?

The DW-50 uses a direct bottom paper feeding system that reduces the waste of bottom paper. In conventional systems, the bottom paper feed path can introduce misalignment that leads to wasted material. The direct feeding design delivers the bottom paper to the sealing station with less opportunity for misalignment, reducing the amount of paper that must be discarded. This waste reduction directly lowers material costs for high-volume producers. At 50-60 bowls per minute, even a small percentage of waste reduction adds up over a full shift.

The Feeding System and Material Efficiency**

The direct bottom paper feeding system is designed for precise delivery, minimizing the offcuts and misaligned pieces that occur when the feed path is indirect. For producers running 170-350gsm paper, this efficiency translates to measurable savings.

Adjustable Specifications for Different Bowl Sizes**

The DW-50 produces bowls with a maximum bottom diameter of 165mm, a maximum top diameter of 185mm, a maximum height of 80mm, and an angle between 4-8 degrees. The production specifications can be adjusted according to needs, allowing the machine to produce different bowl sizes with appropriate tooling changes.

Technical Specifications for Production Planning

Speed and Paper Range

The DW-50 runs at 50-60 bowls per minute and handles paper weights from 170-350gsm. This speed and material range covers the production requirements of disposable bowl manufacturers serving food service, takeout, and catering markets.

Power and Air Requirements

The machine operates on 380V three-phase power with 11kW general power. The working air source requirement is 0.6-0.8Mpa at 0.4m³/min. These specifications allow facility planners to prepare the required utilities before installation.

What Does the Automatic Collection System Deliver?

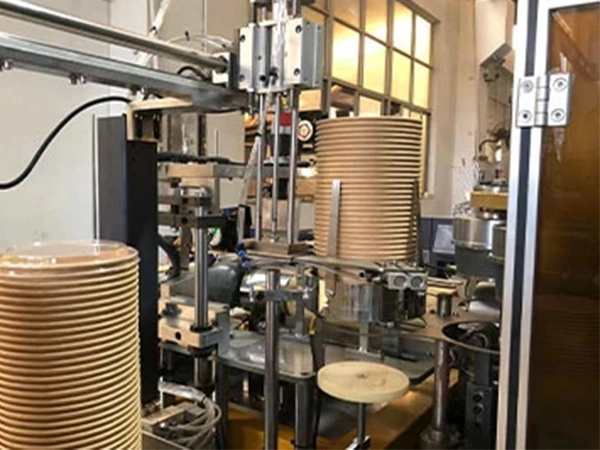

The DW-50 is equipped with an automatic robotic arm to collect paper bowls. The system includes a counting function, solving the problem of paper bowl collection while reducing packaging labor. Finished bowls are counted and stacked automatically, ready for packing. For producers running high-volume shifts, this automation reduces the number of operators required at the discharge end of the line. The new-type stable collecting system ensures consistent, orderly stacking without manual intervention.

Robotic Arm Collection and Counting

The robotic arm collects the finished bowls and deposits them in an organized stack. The counting function tracks production output and ensures accurate batch counts. This combination reduces labor and improves work efficiency.

Reducing Packaging Labor

With the automatic collection system handling the discharge, operators can focus on other tasks rather than manually collecting and counting bowls. This reduces the labor cost per unit and improves the overall efficiency of the production line.

Answers to Common Questions About Bowl Making Machines

What is the maximum bowl size the DW-50 can produce?

The DW-50 produces bowls with a maximum bottom diameter of 165mm, a maximum top diameter of 185mm, a maximum height of 80mm, and an angle between 4-8 degrees. Specifications can be adjusted according to needs.

What paper materials can the machine process?

The machine handles single PE or double PE coated paper with weights from 170-350gsm. This covers the paper stocks used in disposable bowls for hot and cold food applications.

How does the ultrasonic sealing system work?

The EVERGREEN ultrasonic system uses high-frequency vibrations to fuse the PE coating without adhesive. The PLC and encoder control the timing of the ultrasonic activation to ensure consistent seal quality across the production run.

What support is available after purchase?**

A guide booklet ships with the machine to help with installation and adjustment. The machine undergoes a one-week test run before delivery. Free training is available at the factory, and consumable spare parts are provided free for one year. The machine carries a 1-year warranty against defects in design and workmanship from the shipment date.

Request a Bowl Making Machine Configuration for Your Production

A Paper Bowl Machine with 50-60 pcs/min output, ultrasonic body sealing, and automatic collection is the practical choice for disposable bowl producers who need reliable, continuous operation. The DW-50 Disposable Bowl Making Machine from Sincere Machine delivers 50-60 pcs/min speed, 165mm max bottom diameter, 170-350gsm paper range, EVERGREEN ultrasonic sealing, direct bottom paper feeding, automatic lubrication with oil pump and filtration, and robotic arm collection with counting.

Whether you're producing soup bowls, salad bowls, or takeout containers, this machine offers the speed, sealing quality, and automation that modern bowl production demands. With a 20-hour daily running rating and a 1-year warranty, it's built for the demands of continuous commercial operation.

Contact Sincere Machine for a bowl making machine configuration assessment → their team can help you select the right model, tooling, and production setup for your specific bowl sizes and output targets. Get a Paper Bowl Machine that runs through the shift without stopping—so your production line keeps pace with your order book.
